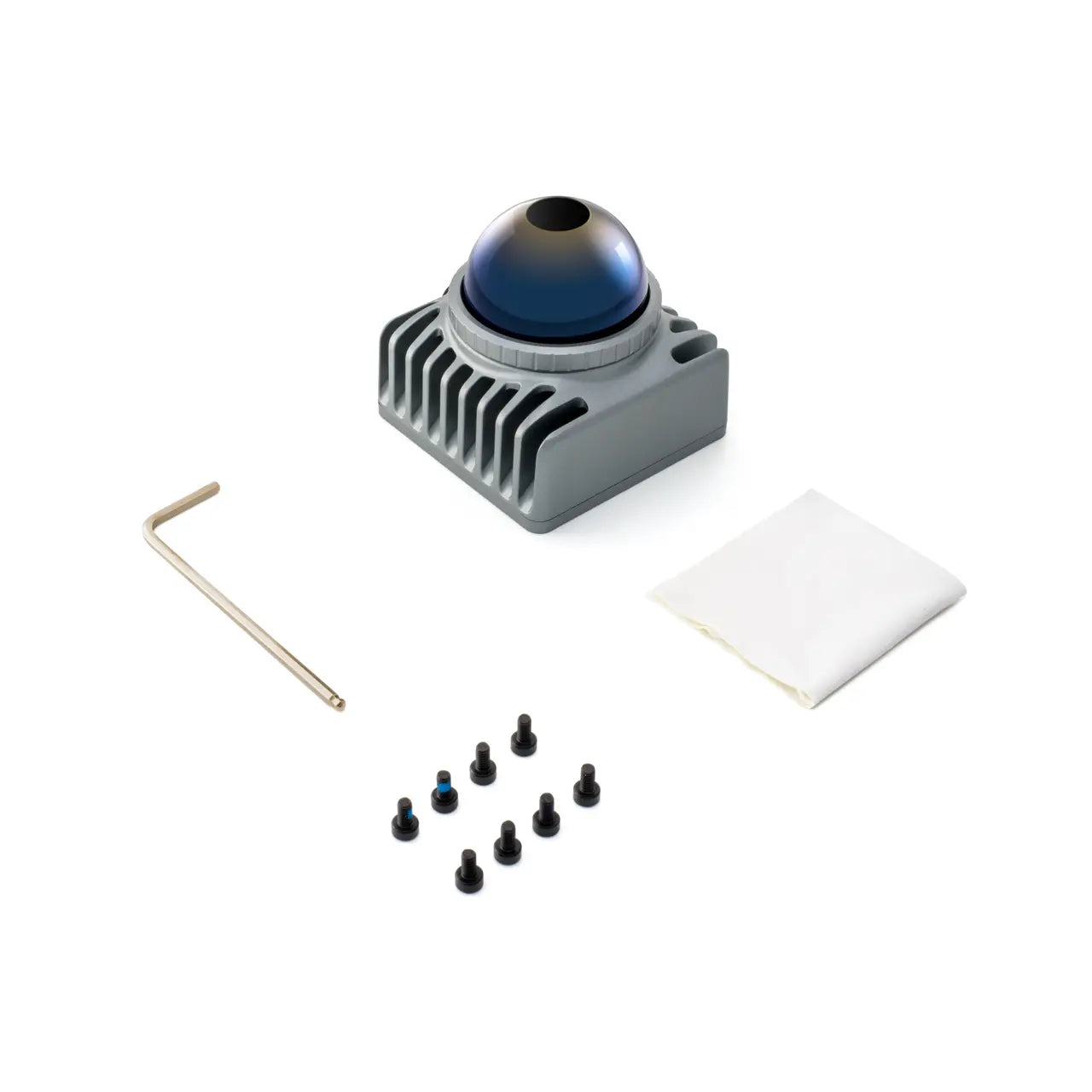

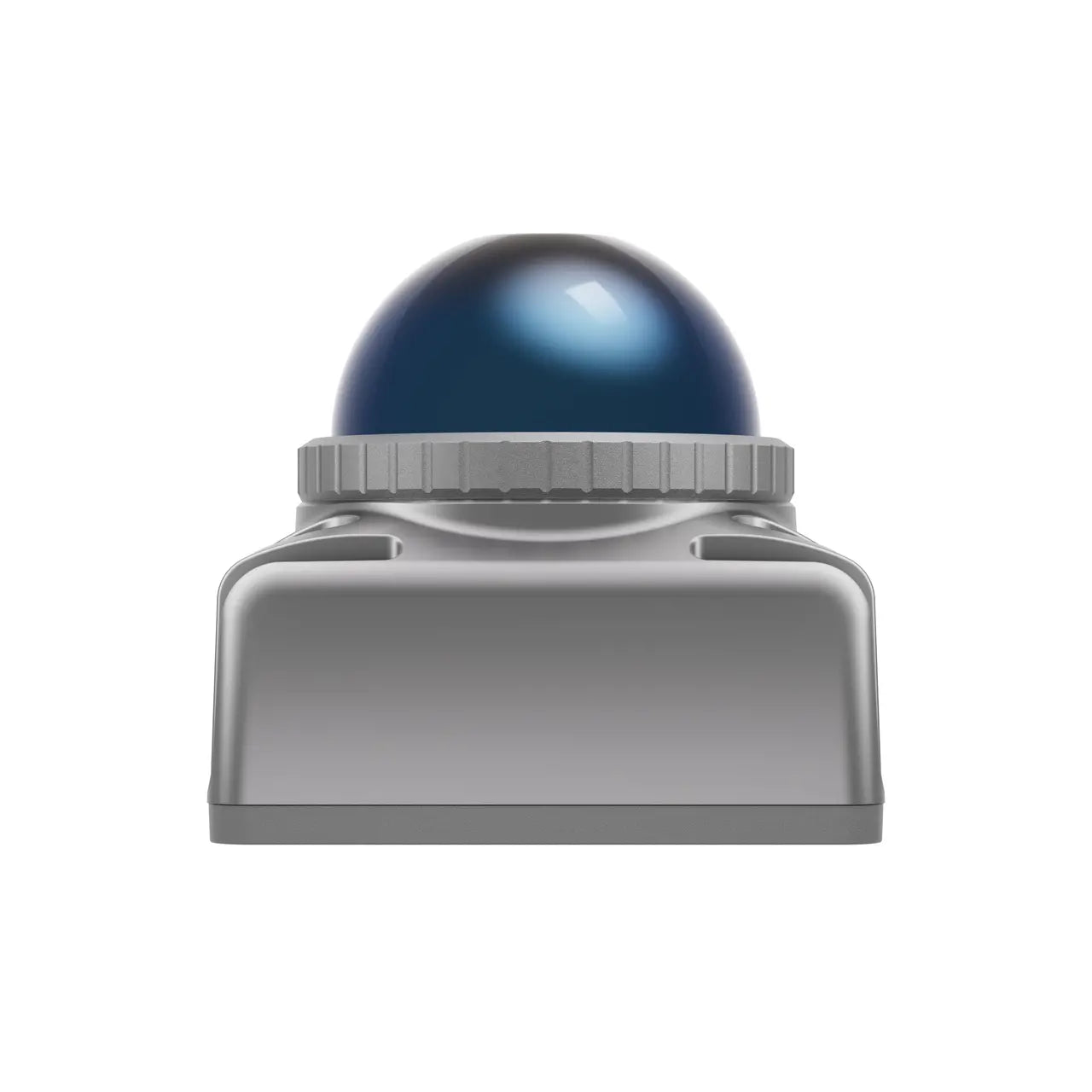

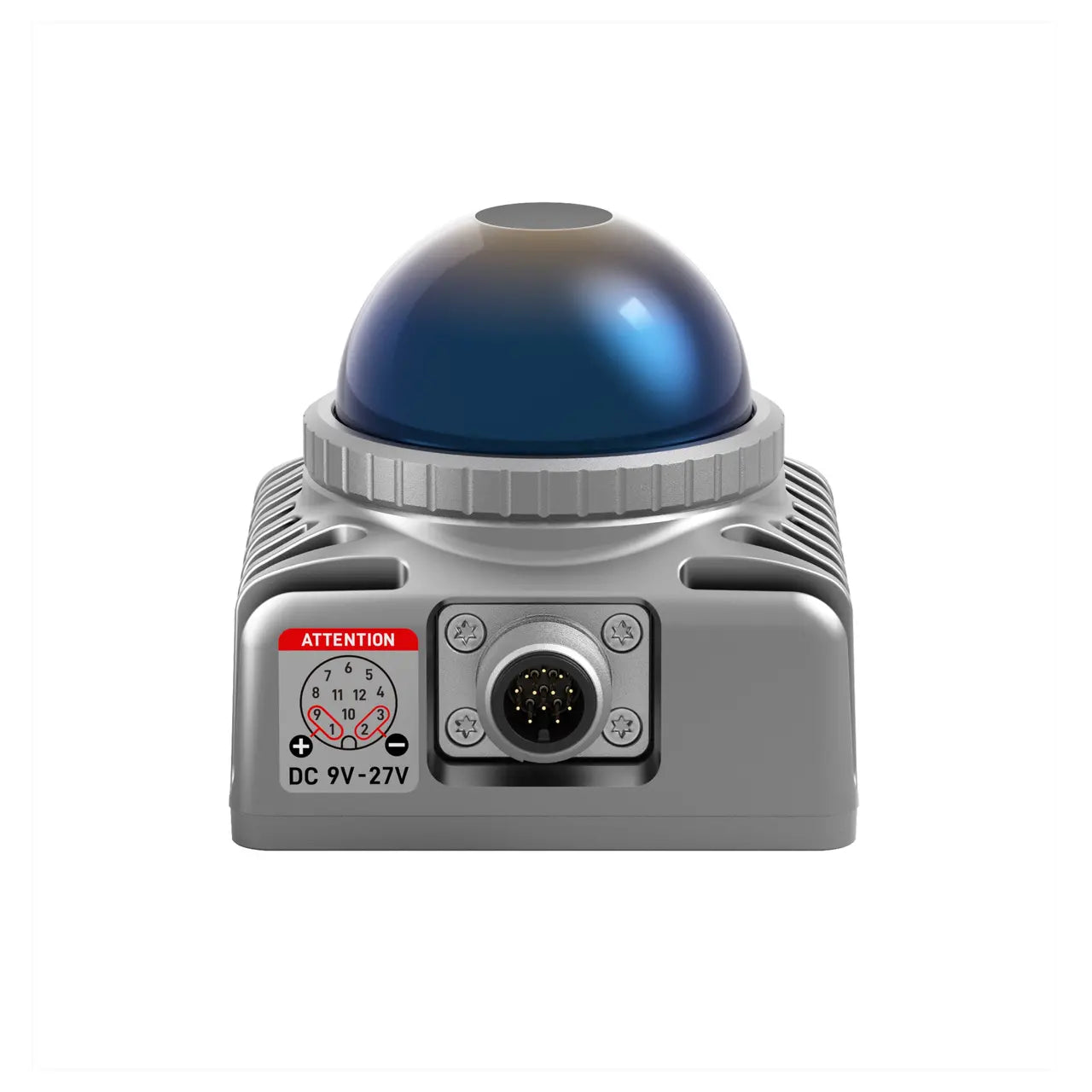

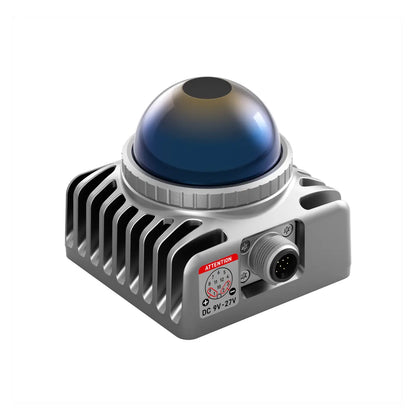

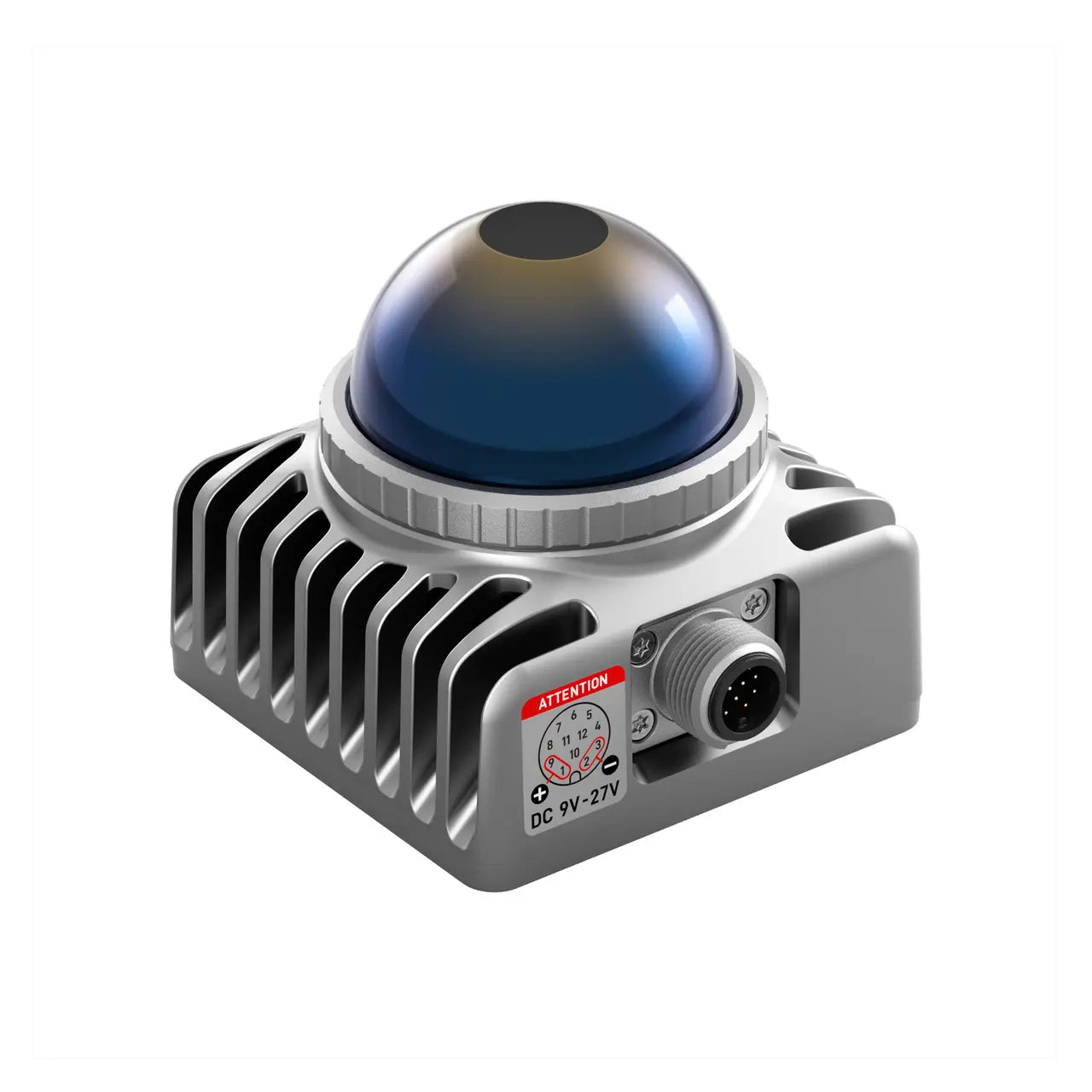

Livox Mid-360S is a compact, high-performance 3D LiDAR sensor designed for intelligent mobile robots, autonomous systems, mapping, navigation, and obstacle avoidance. Featuring Livox's advanced hybrid solid-state technology, Mid-360S delivers comprehensive 360° spatial perception with excellent precision and reliability in an exceptionally compact form factor.
- 360° × 59° Ultra-Wide Field of View
- Up to 200,000 Points per Second
- 40 m Detection Range @ 10% Reflectivity
- Up to 100 m Cut-Off Detection Range
- 0.1 m Minimum Detection Range
- Built-in High-Performance IMU
- IP67 Protection Rating
- Compact and Lightweight Design
With a horizontal field of view of 360° and a vertical field of view of 59°, Mid-360S provides extensive three-dimensional environmental awareness, enabling robots to perceive surrounding objects and terrain from multiple directions.
Delivering up to 200,000 points per second, Mid-360S generates rich and detailed point-cloud data for real-time localization, mapping, obstacle detection, and autonomous navigation. Its active anti-interference capability helps maintain reliable operation even in environments where multiple LiDAR sensors are operating simultaneously.
Despite its powerful sensing capabilities, Mid-360S measures only 65 × 65 × 60 mm and weighs approximately 265 g, making it easy to integrate into compact robotic platforms without adding significant size or weight.
The sensor features a minimum detection range of just 0.1 m and provides reliable perception in both bright and low-light environments. With an IP67 protection rating and an operating temperature range from -20°C to 55°C, Mid-360S is designed for demanding indoor and outdoor robotic applications.
Built-in IMU, Ethernet connectivity, and support for precise time synchronization provide developers with a versatile sensing platform for advanced robotics and autonomous systems.
From AMRs and autonomous forklifts to quadruped robots, service robots, mapping platforms, and unmanned vehicles, Livox Mid-360S delivers compact, reliable, and high-performance 3D perception for the next generation of intelligent machines.
